In today’s power distribution systems, reliability, safety, and efficiency are critical for both utilities and industrial users. One cable type that consistently meets these demands is the concentric cable. Widely used in low-voltage distribution networks, concentric cables offer enhanced protection, improved electrical performance, and increased durability making them a preferred choice for engineers and procurement professionals.

This guide explores the fundamentals of concentric cable, its construction, applications, advantages, and how selecting the right manufacturer like HNBF Power can directly impact your project success.

What is a Concentric Cable?

A concentric cable is a type of electrical cable designed with a central conductor surrounded by one or more layers of concentric conductors. These outer conductors are typically arranged in a circular pattern around the core and serve as neutral, earth, or return paths.

This unique construction provides:

• Balanced electrical performance
• Enhanced mechanical protection
• Reduced electromagnetic interference

Concentric cables are commonly used in underground power distribution, service connections, and utility installations where safety and reliability are critical.

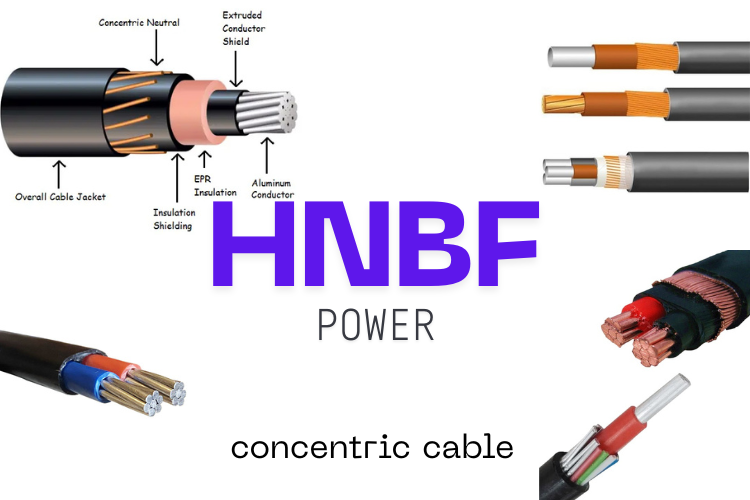

Structure and Design of Concentric Cable

1. Central Conductor

The core conductor is usually made from copper or aluminum, responsible for carrying the primary electrical current.

2. Insulation Layer

A high-quality insulation material such as XLPE or PVC surrounds the conductor, ensuring electrical safety and preventing leakage.

3. Concentric Neutral/Outer Conductors

Multiple small wires are helically wrapped around the insulation. These serve as:

• Neutral return path
• Earth conductor
• Shield against external interference

4. Outer Sheath

The final protective layer shields the cable from environmental conditions such as moisture, chemicals, and mechanical damage.

This layered design ensures durability and optimal performance in demanding environments.

Key Applications of Concentric Cable

Concentric cables are widely used across various sectors due to their versatility and reliability.

Residential Power Distribution

Used for connecting homes to the main power grid, ensuring safe and consistent electricity supply.

Underground Utility Networks

Ideal for underground installations where protection against mechanical damage and moisture is required.

Street Lighting Systems

Provides stable power supply for public lighting infrastructure.

Industrial and Commercial Use

Supports power distribution in factories, commercial buildings, and infrastructure projects.

Anti-Theft Power Systems

The concentric neutral design makes unauthorized tapping more difficult, reducing power theft in certain regions.

Advantages of Concentric Cable

Enhanced Safety

The concentric neutral acts as a protective shield, reducing the risk of electric shock and improving grounding performance.

High Reliability

Its robust construction ensures uninterrupted power supply even in harsh environments.

Better Mechanical Protection

The outer conductor layer protects the inner core from external damage.

Reduced Power Loss

Efficient current distribution minimizes energy losses during transmission.

Ease of Installation

Flexible design allows for easier handling and installation, especially in underground systems.

Why Engineers and Buyers Prefer Concentric Cable

For engineers and procurement teams, selecting the right cable is not just about cost it’s about long-term performance and system reliability. Concentric cables address several critical pain points:

• System failures due to poor insulation → Solved with high-grade insulating materials
• Electrical losses and inefficiency → Minimized through optimized conductor design
• Safety concerns in urban installations → Enhanced through concentric grounding
• Maintenance challenges → Reduced due to durable construction

This makes concentric cables a strategic investment for infrastructure projects.

Choosing the Right Concentric Cable Manufacturer

The performance of a concentric cable largely depends on its manufacturing quality. Key factors to consider include:

• Compliance with international standards
• Use of high-purity conductor materials
• Advanced insulation technology
• Consistent quality control processes
• Customization capabilities

HNBF Power stands out as a trusted global manufacturer, offering high-performance concentric cables tailored to meet utility, industrial, and EPC project requirements.

HNBF Power: Your Partner for Reliable Cable Solutions

With extensive experience in power transmission and distribution, HNBF Power delivers premium concentric cable solutions designed for modern infrastructure challenges. Their product range includes:

• AAC, AAAC, and ACSR conductors
• ABC (Aerial Bundled Cables)
• Low-voltage power cables
• Concentric and specialized cables

By combining advanced manufacturing technology with strict quality standards, HNBF Power ensures every cable meets the demands of real-world applications.

Best Practices for Installation and Maintenance

To maximize the performance of concentric cables, follow these best practices:

Proper Handling

Avoid excessive bending or mechanical stress during installation.

Correct Grounding

Ensure proper grounding to utilize the full safety benefits of the concentric design.

Environmental Considerations

Select the right sheath material based on installation conditions (e.g., moisture, chemicals).

Routine Inspection

Periodic checks help identify wear or damage early, reducing downtime.

FAQs About Concentric Cable

1. What is the main purpose of a concentric cable?

The primary purpose is to provide a reliable power supply with enhanced safety through its concentric neutral or grounding layer.

2. Where are concentric cables commonly used?

They are widely used in residential connections, underground distribution systems, and street lighting networks.

3. What materials are used in concentric cables?

Typically, copper or aluminum conductors are used along with PVC or XLPE insulation.

4. How does a concentric cable improve safety?

The outer concentric conductor acts as a grounding layer, reducing the risk of electrical faults and shocks.

5. Why choose HNBF Power for concentric cables?

HNBF Power offers high-quality, customizable solutions backed by global manufacturing expertise and strict quality control.

Final Thoughts

Concentric cables play a vital role in modern power distribution systems by offering a balance of safety, efficiency, and durability. Whether for residential, commercial, or industrial applications, their unique design ensures reliable performance in demanding environments.

Choosing a trusted manufacturer is equally important to ensure long-term success. HNBF Power combines technical expertise with high-quality production standards to deliver concentric cable solutions that meet the evolving needs of global power infrastructure.
